feat(portal): one swipe card per decision for paused runs and saves

[abrichr]

Don't merge yet. Richard reviews the look first.

Supersedes #208 and #209 (left open for reference). Includes #207's save-approval relay (fast-forwarded in), so the diff shows it until #207 merges. Flow's save routes come from OpenAdaptAI/OpenAdapt#1234; presentation.fields comes from a separate small Flow PR. Against an older Flow the phone shows the screenshot instead of fields.

What changes

The phone shows one card per decision, for paused runs and for saves waiting for approval. It's built from the approved prototype.

• Buttons first, swipe as a shortcut. Two visible answers (at least 44 px) plus ⋯ for every other allowed answer, the full screenshot and details. Swiping right or left does the same as the two buttons (WCAG 2.5.1 and 2.5.7), and so do the arrow keys.
• Five seconds to undo. The answer is held on the phone, then sent. Undo sends nothing. If the phone goes offline, the page closes, or the request expires during the hold, the answer is dropped. Nothing is queued.

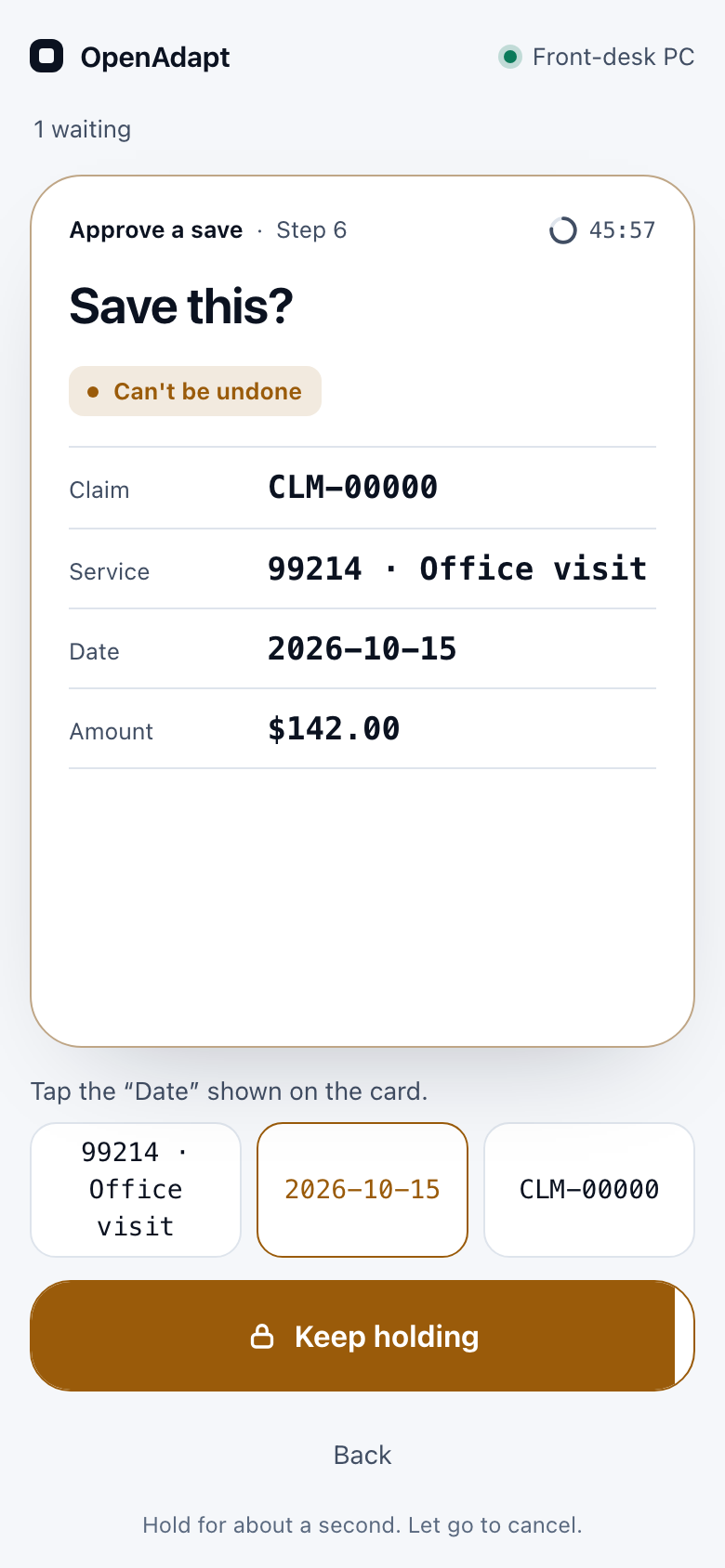

• Can't be undone means match and hold. For risk_class: irreversible, a swipe or tap only arms. The person taps one fact from the card (a date first, then any value with a digit, else the step number) and holds for 1.2 s. There's no undo after the hold.

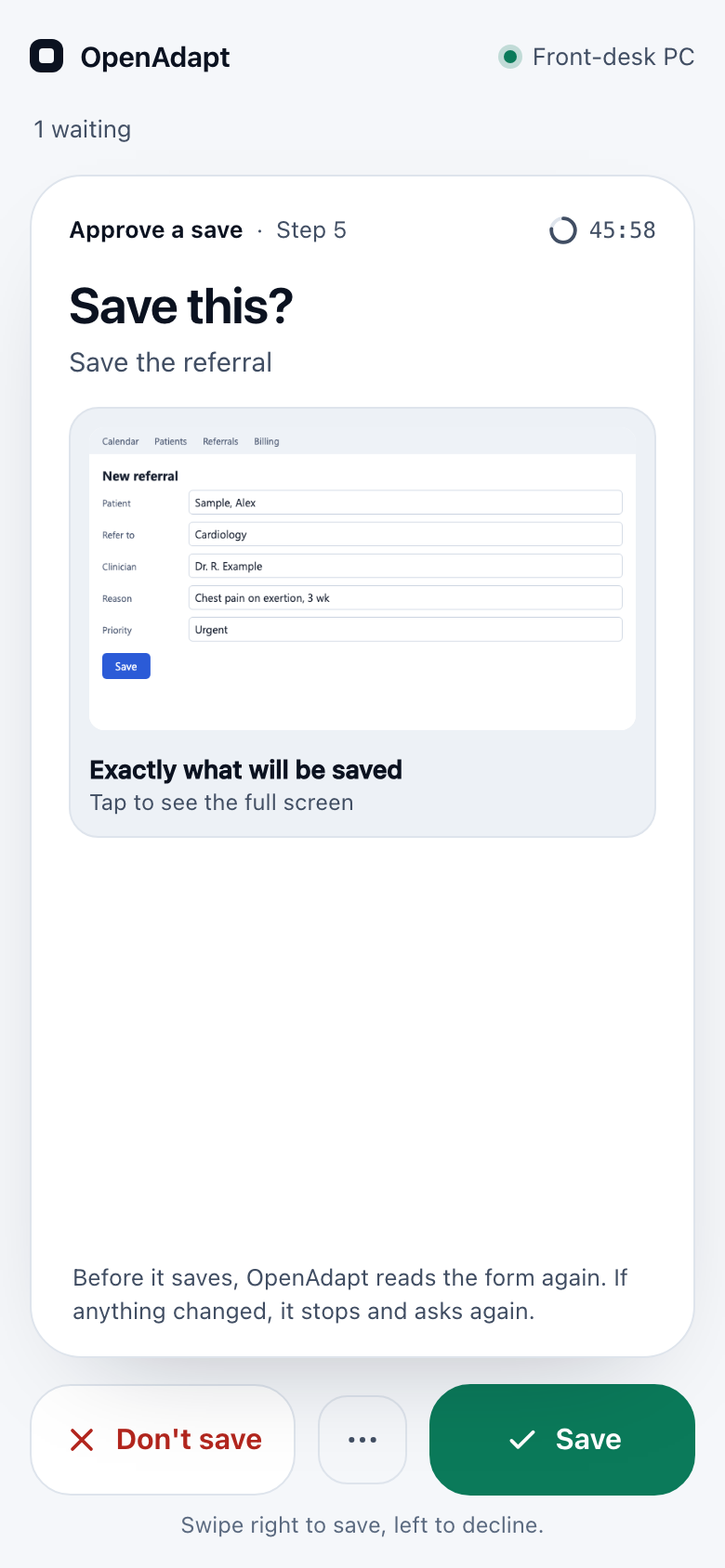

• Values first, screenshot behind a tap. A save shows presentation.fields in large monospace type, with replaced values struck through. Without fields, the card shows the screenshot itself. A malformed list is dropped whole.
• Emphasis (EMPHASIS_ENABLED): the single continuing answer is filled only when the step can be undone.
• Dark first, light from the system setting, with reduced motion respected. All literal colours are canonical tokens (dark from the inset set). The prototype's blue approve is now the brand green --accent-verified / --inset-ok, because the palette test requires canonical values.
• The old scroll-to-the-end gate is gone. One card fits on screen, and the long explanations moved to ⋯.

#209 bugs fixed

1. A bare 404 no longer means "gone" or "no saves". Only Flow's closed codes (request_not_waiting, request_unknown, already_answered) mean gone. Any other 404 shows "not attended", and a 404 save list makes the empty screen say saves aren't reaching the phone.
2. 401 and 403 (including a refused CSRF or origin on an answer) go back to pairing.
3. Receipts show the receipt's decided_at, not the phone's clock.

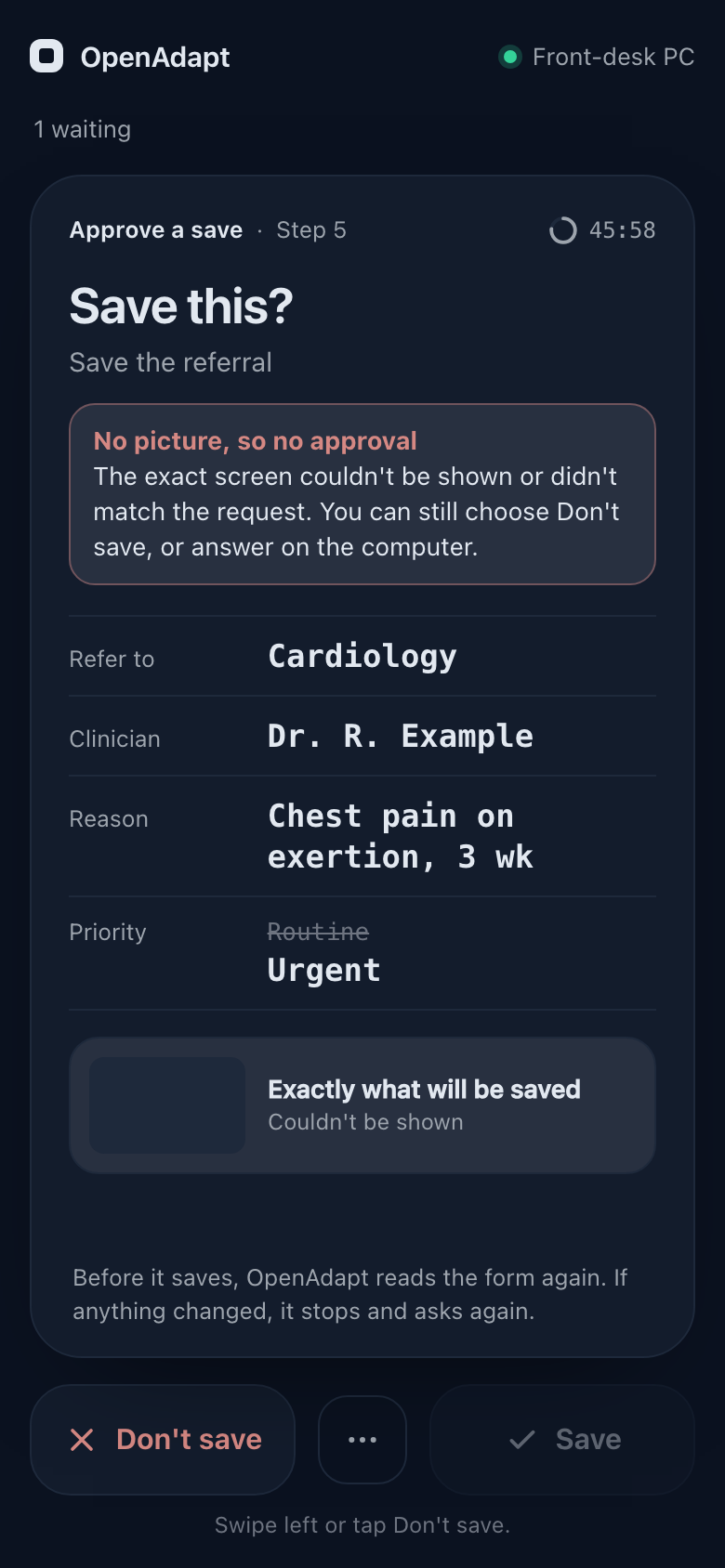

4. The save frame must be image/png with a PNG signature and a SHA-256 equal to presentation.screenshot_sha256. If not, there's no picture and no approval, though Don't save still works.
5. A locked button (Save with no picture, the hold before a match) can't be re-enabled by the online/offline sync.
6. request_expired is matched exactly instead of with a regex.

Contract, unchanged

Bearer token on every call. POSTs carry Origin, JSON content type and X-OpenAdapt-Portal-CSRF, and the phone refuses to send a body over 16 KiB. Save answers are exactly action, task_digest, task_signature, plus decline_reason (wrong_values, wrong_record, screen_problem) on reject. Paused runs keep their /api/portal/tasks routes and their six-field body. Only signed allowed actions are shown, and nothing goes into notifications.

Screens (synthetic data, 390x844)

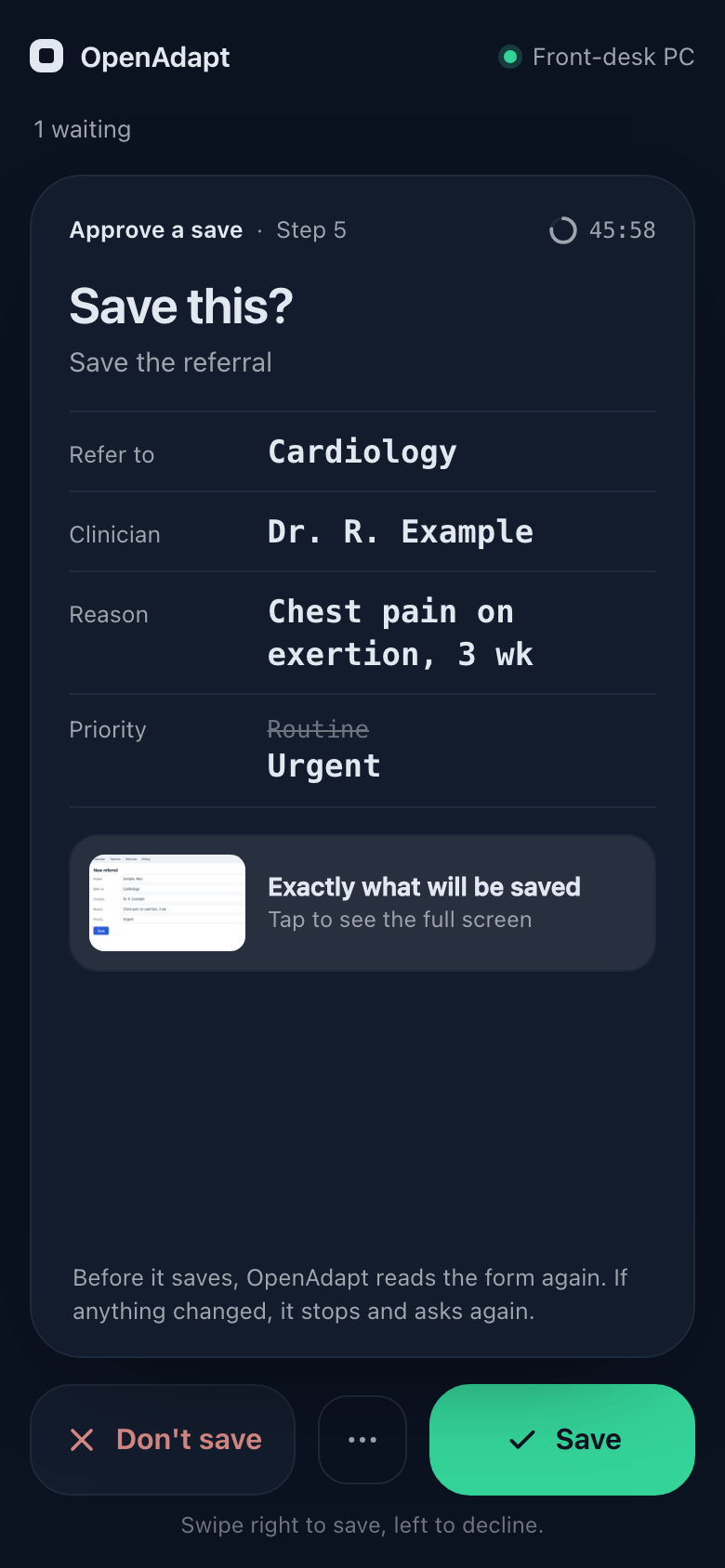

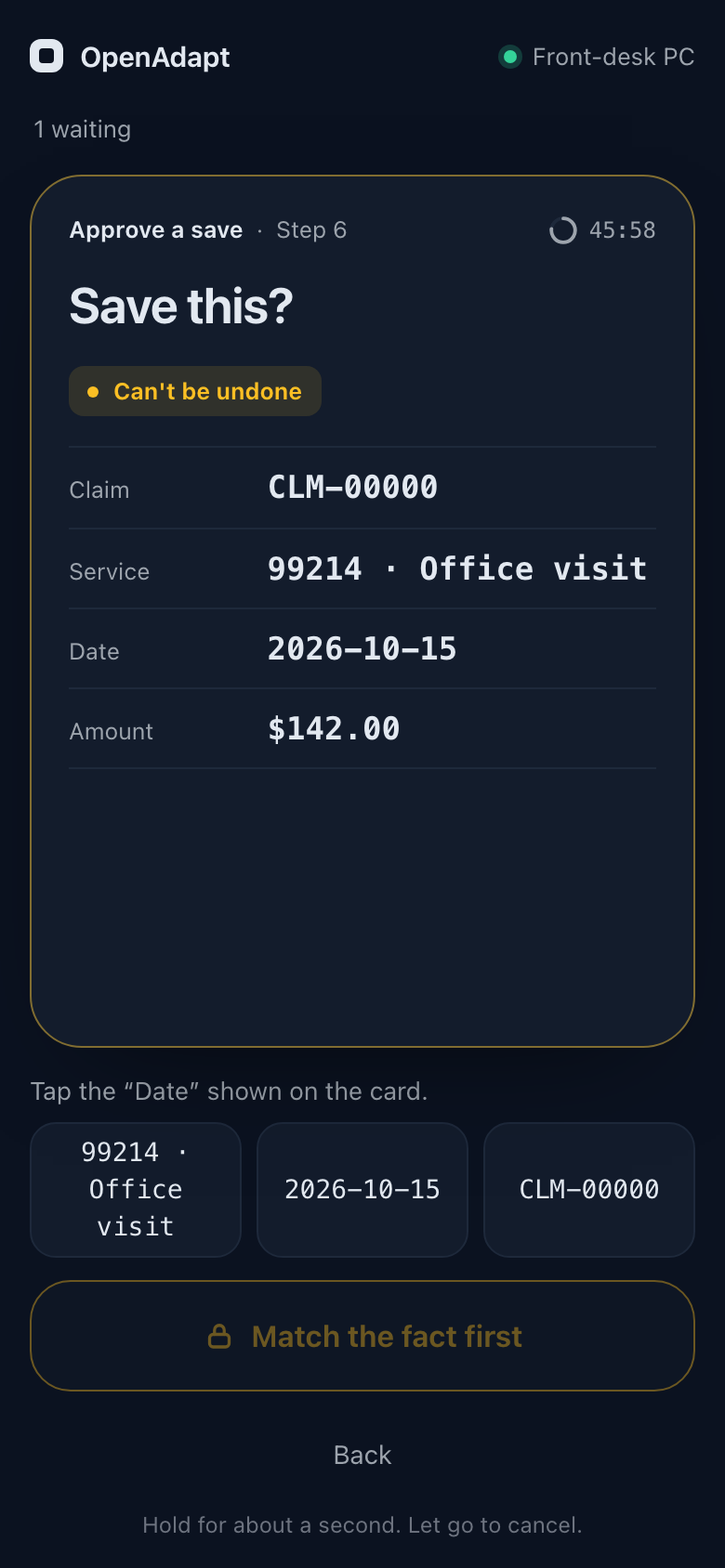

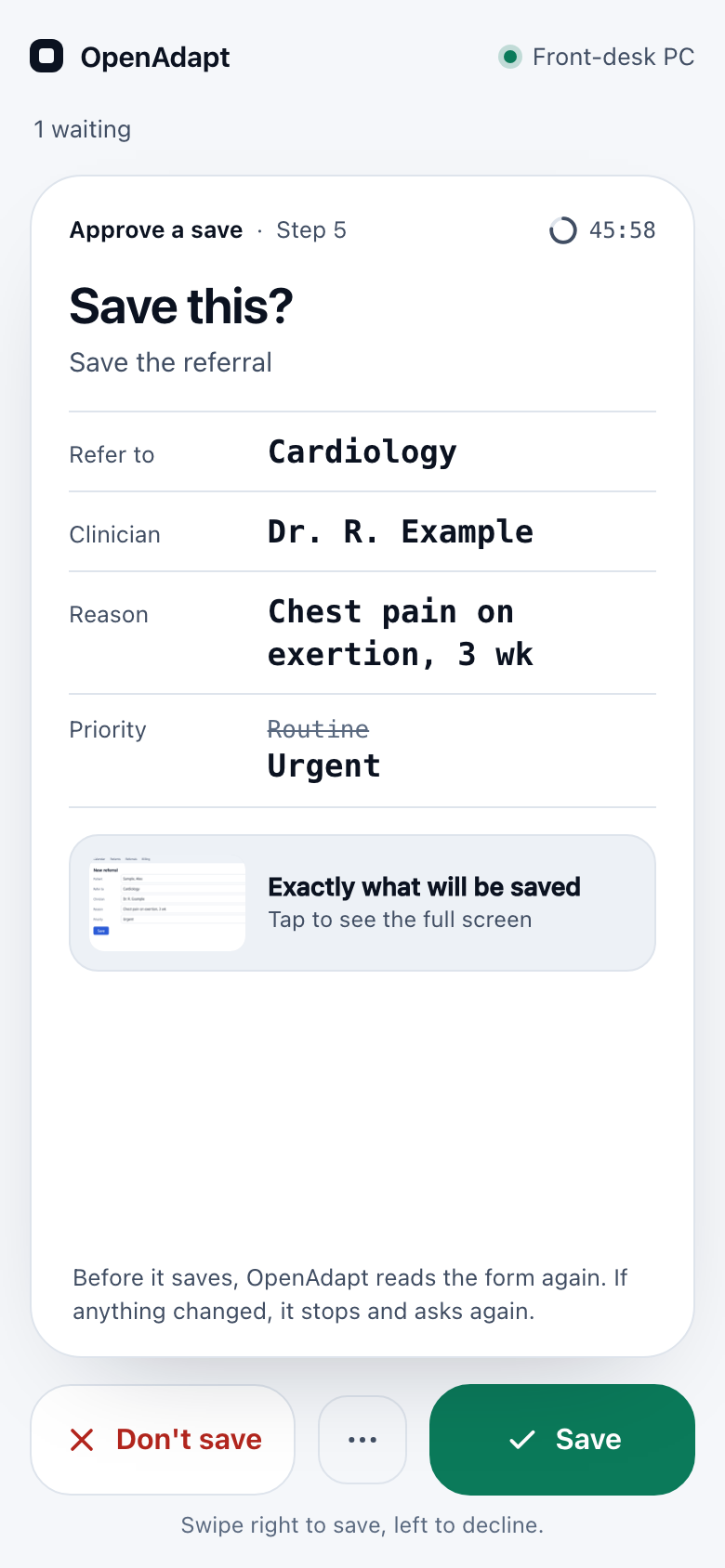

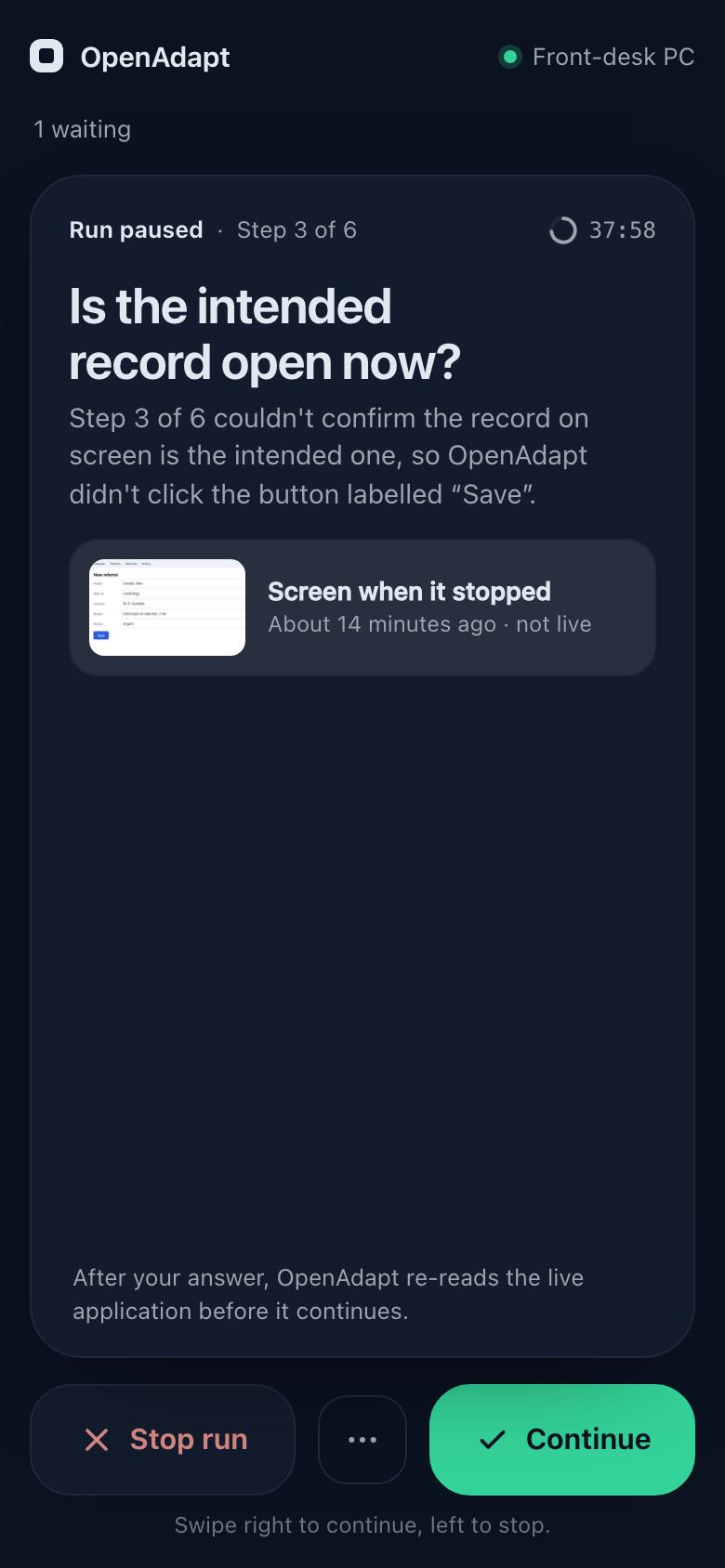

Save, dark	Save, light	Paused run	Can't be undone, armed

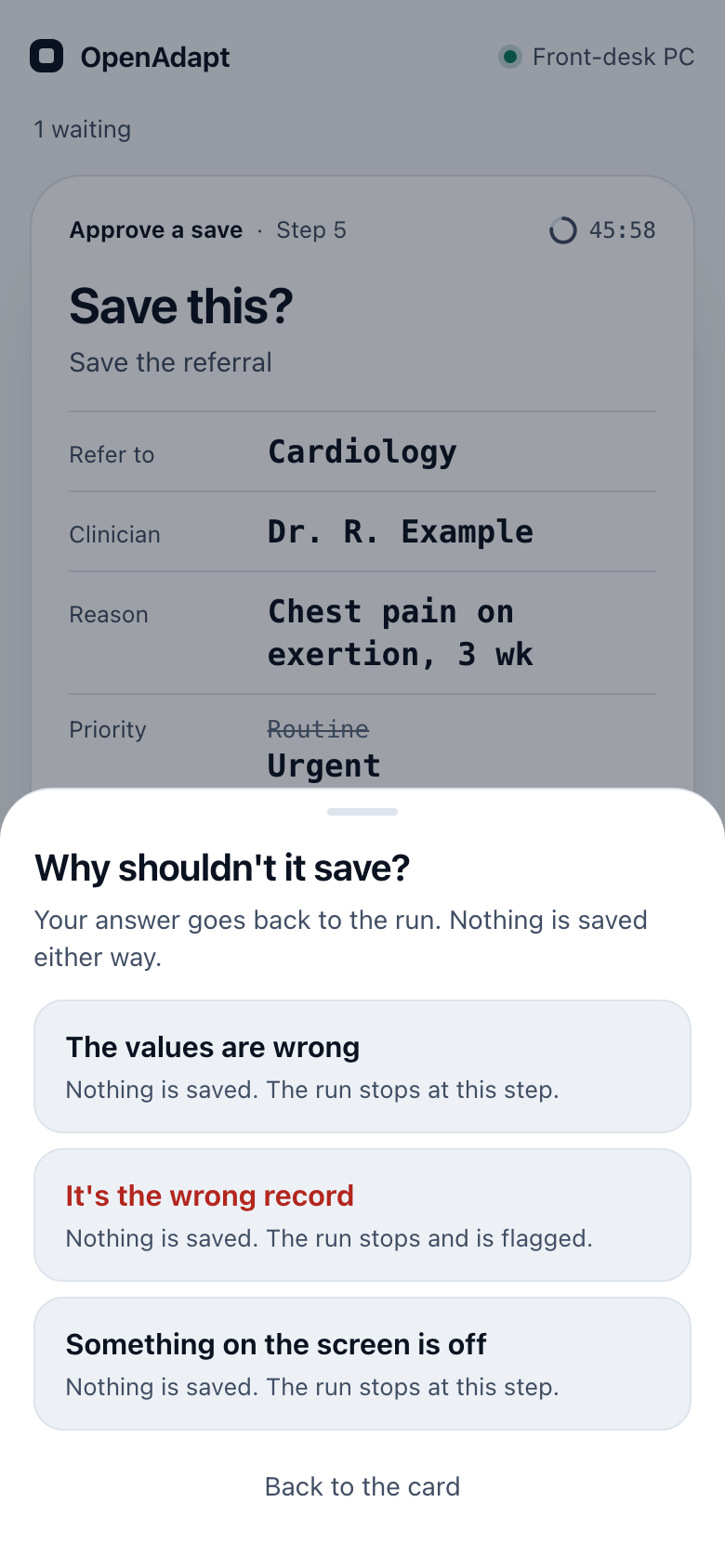

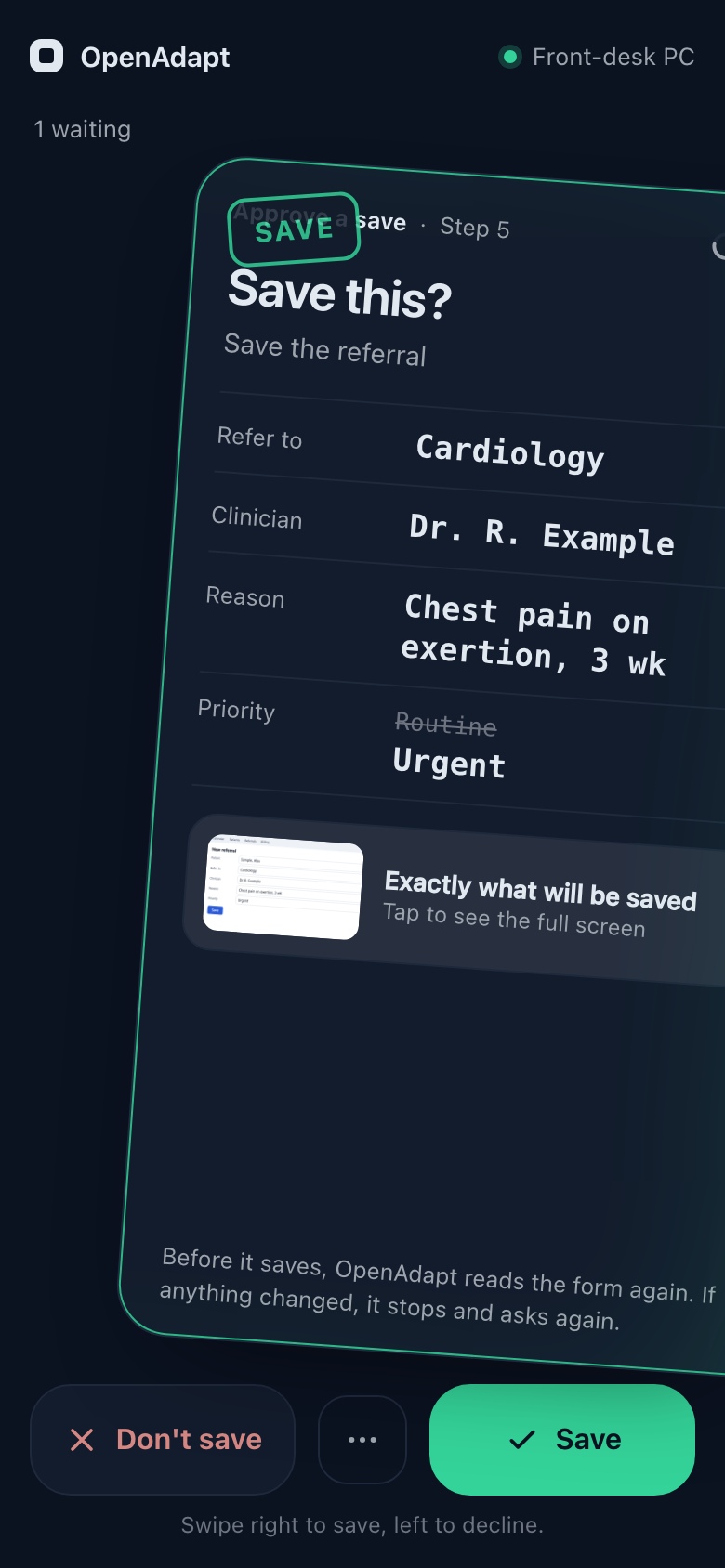

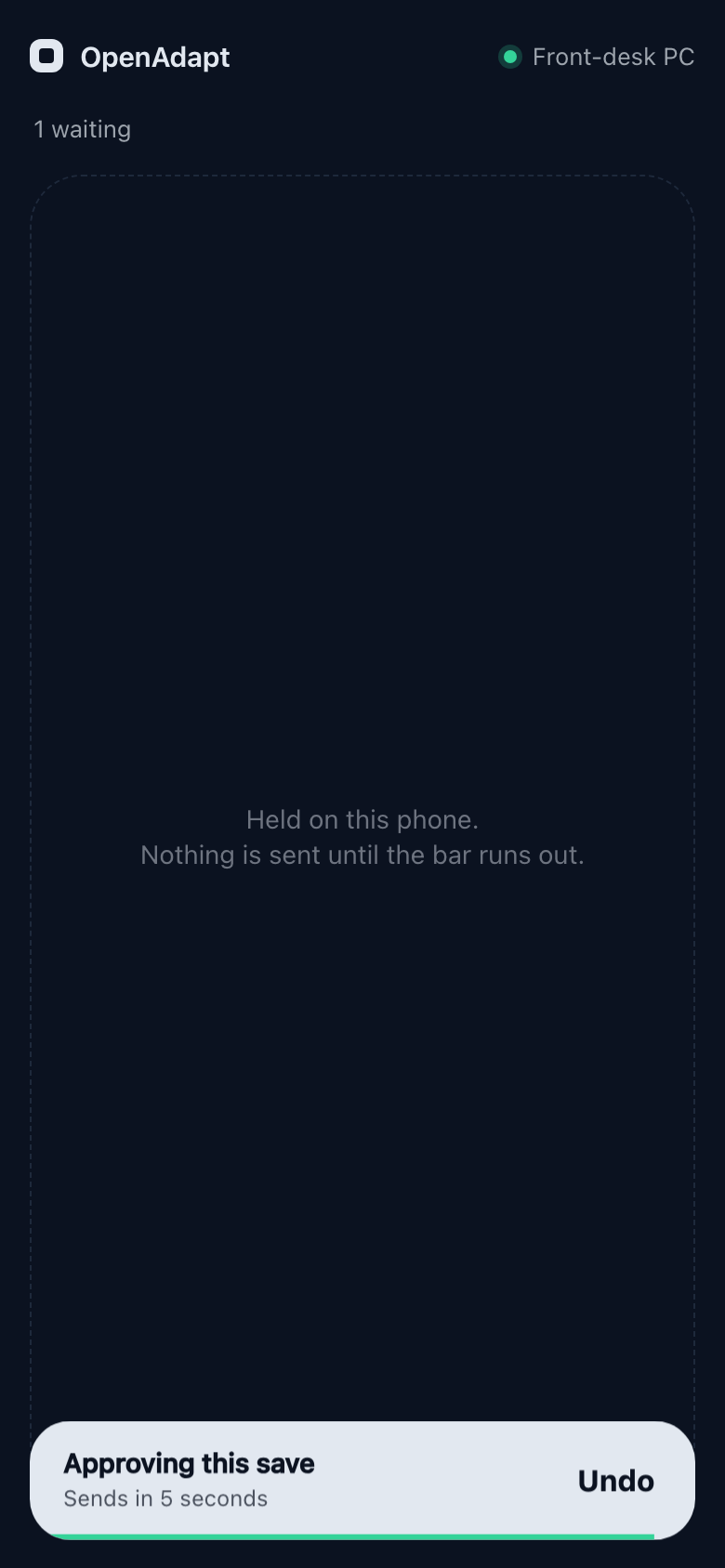

Swipe right	Undo window	Decline reasons	Screenshot only

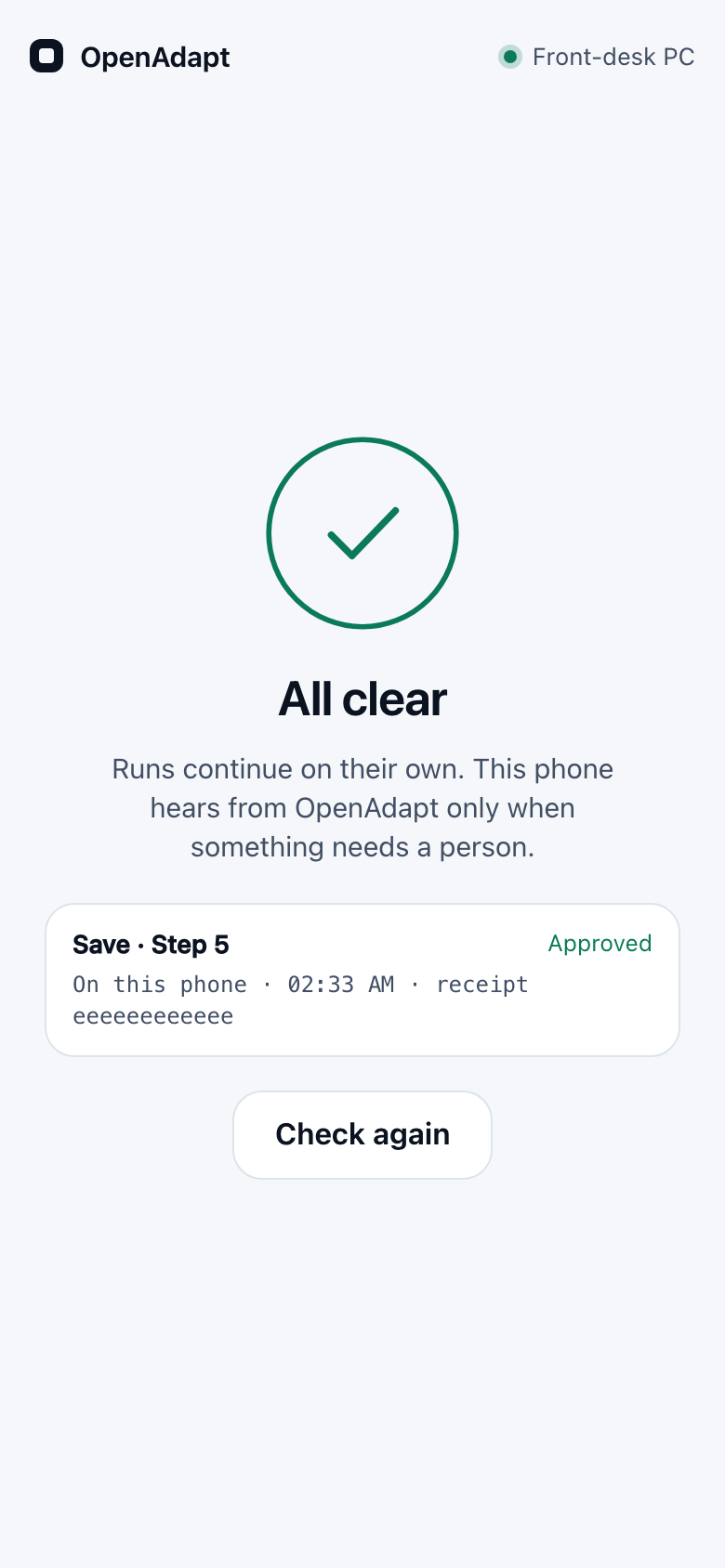

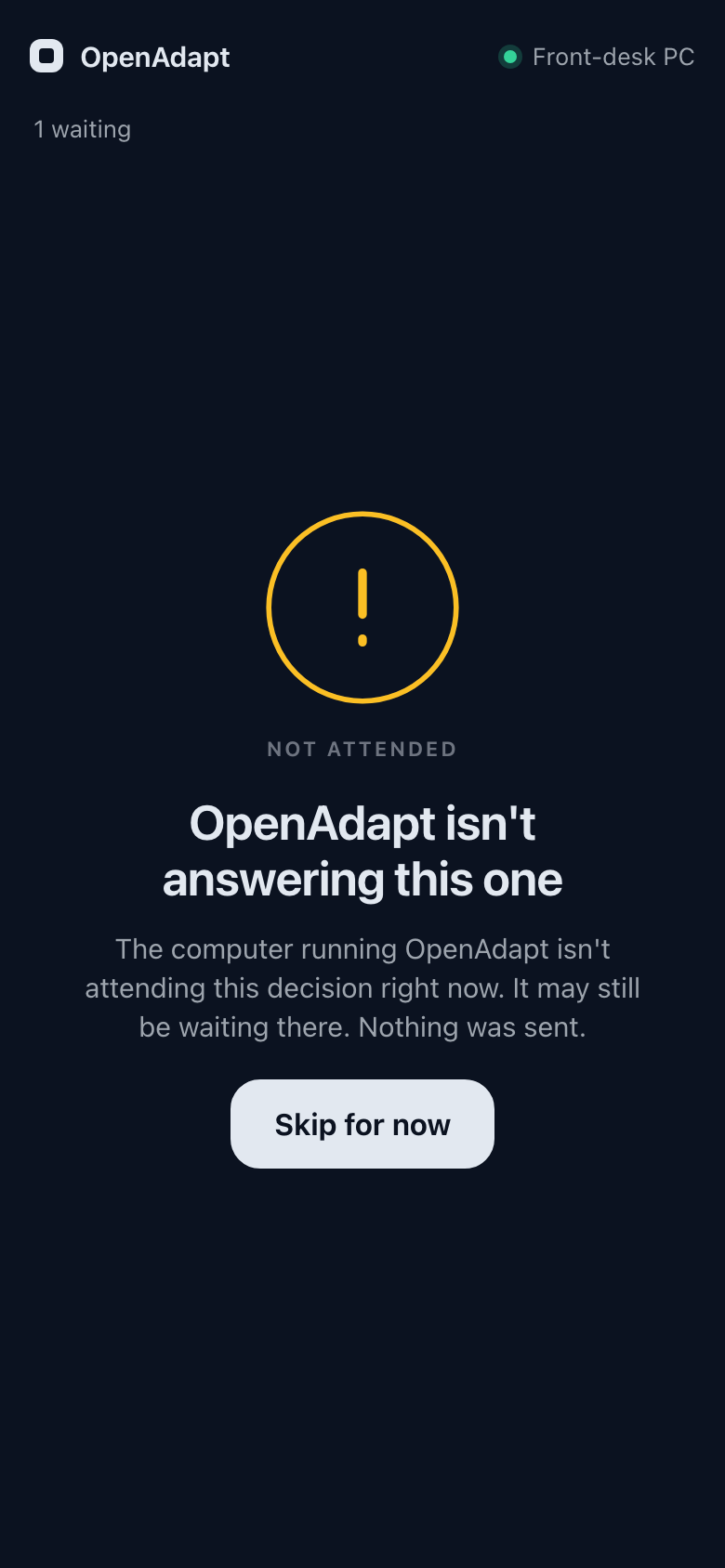

No picture	Holding	All clear + receipt	Not attended

All 29 states in each theme: dark, light. The individual files are on the pr-assets/portal-swipe-cards branch, which isn't for merging.

scripts/capture_portal_scenarios.py now drives the real shell through a stubbed transport with real taps, drags and holds, and writes every state in dark and light at 390x844. The form in the screenshot is a synthetic page the script renders.

Tests

• src/portalShell.test.ts was rewritten (52 tests) on the real index.html with fake timers. It covers the exact save and run bodies and headers, undo, offline drop, expiry during the hold, the 16 KiB refusal, closed decline reasons, fields vs. screenshot fallback, digest mismatch, non-PNG, swipe and keyboard, match and hold (short hold sends nothing), decided_at, every 404 case, 401 and 403 to pairing, reconciliation proof, halted, uncertain, unknown and legacy receipts.
• tests/test_portal/test_shell.py: no inline style= (CSP), reduced motion, 44 px targets, dark by default.
• tests/test_portal/test_shell_palette.py: dark and light tokens against canonical tokens, plus every literal hex is canonical.
• Local: pytest tests/ 1397 passed, 2 skipped. npm run test:ui 371 passed. tsc --noEmit clean. ruff check clean.
• Checked by hand in a browser at 390x844, dark: drag right, undo window, approve, advance to the next card.
